Stainless steel tees are pipe fittings and pipe connectors. They are used at the branch pipes of the main pipe. Stainless steel tees are divided into equal diameter and different diameter. The ends of the pipes of equal diameter tees are all the same size; the main pipe of different diameter tees has the same size, while the pipe size of the branch pipe is smaller than that of the main pipe.
Product Parameters
|
Product Name |
stainless steel pipe tee |
|
Material |
stainless steel |
|
Process |
cold formed |
|
Standard |
ASTM A403, MSS SP-43;DIN 2605, DIN2609, DIN2615, DIN2616; |
|
Grade |
SUS304,SUS316, 2520/310S duplex2205/S31803,S32750,S32760,904L,317,347,347H |
|
Size |
1/2"－20" (DN15－DN500) Sch10S-160S |
|
Certification |
ISO9001, SGS, ROHS |
|
End |
Beveled Ends |
|
Application |
Food, beverages, dairy products, beer, and petroleum, fine chemicals |
|
Package: |
Plywood\wood pallet |
Product Specifications
|
Size |
A Outeiameter |
B CenterHeight |
C Length |
D Thickness |
Weight/Gram |
|
19(3/4") |
19 |
27.5 |
57 |
1.5 |
40 |
|
25(1") |
25 |
34.5 |
68 |
1.5 |
67 |
|
32(1 1/4"） |
32 |
37 |
76 |
1.5 |
97 |
|
B8(1 1/2") |
38 |
48 |
97 |
1.5 |
40 |
|
45(1 3/4") |
45 |
57.5 |
115 |
1.5 |
213 |
|
51(2") |
51 |
59.5 |
120 |
1.5 |
249 |
|
57(2 1/4") |
57 |
64.5 |
130 |
2 |
403 |
|
63(2 1/2") |
63 |
67 |
136 |
2 |
470 |
|
76(2 3/4") |
76 |
72 |
145 |
2 |
577 |
|
89(3") |
89 |
85.5 |
170 |
2 |
786 |
|
102(4") |
102 |
91 |
185 |
2 |
947 |
|
108(4 1/4") |
108 |
136 |
190 |
2 |
1070 |
|
133(5 1/4") |
133 |
118.5 |
240 |
2 |
1047 |
|
159(6 1/4") |
159 |
140.5 |
279 |
2 |
2250 |
|

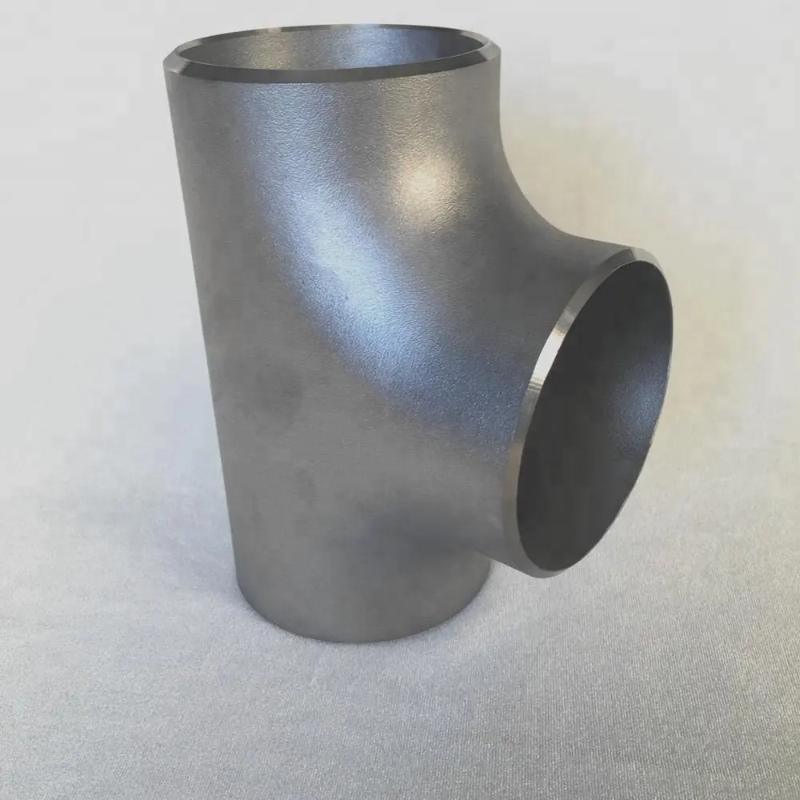

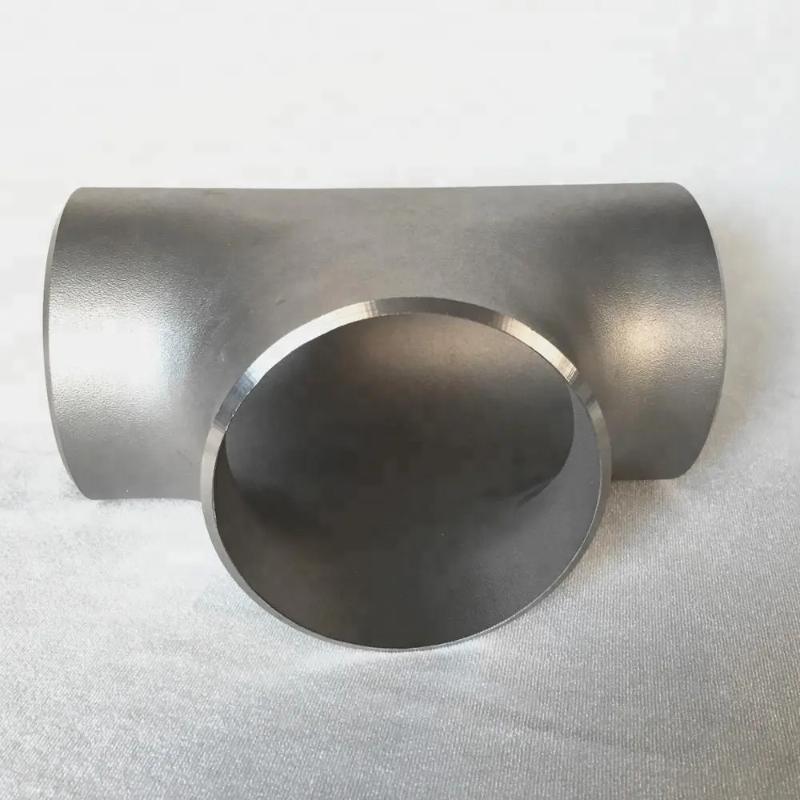

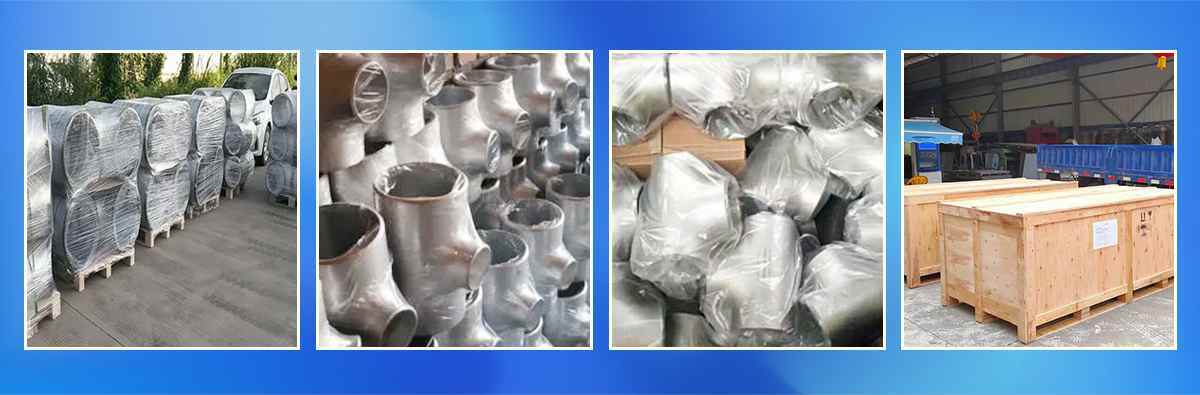

Product Details |

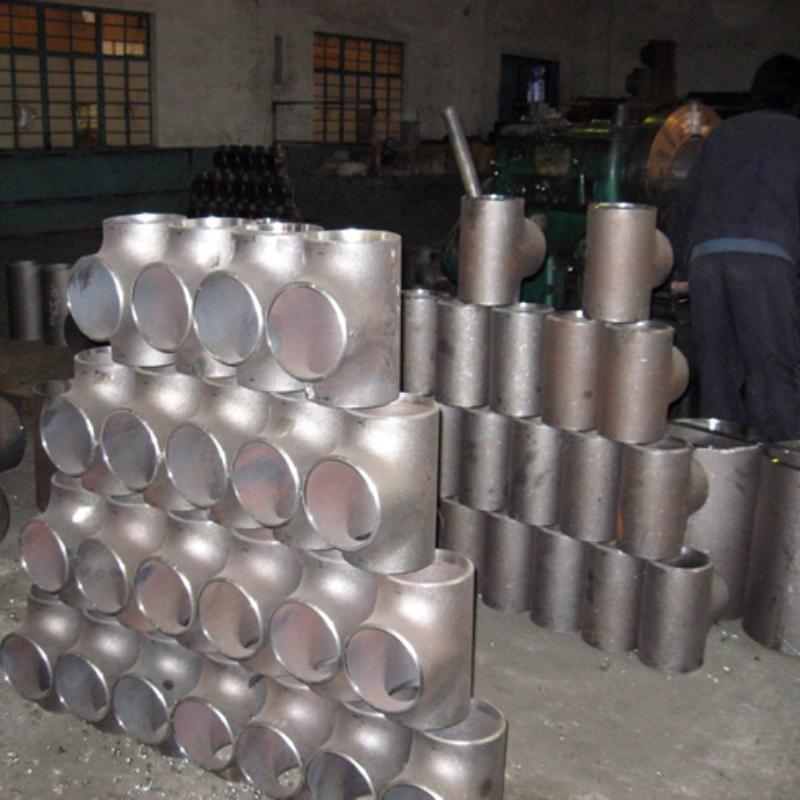

Product Production |

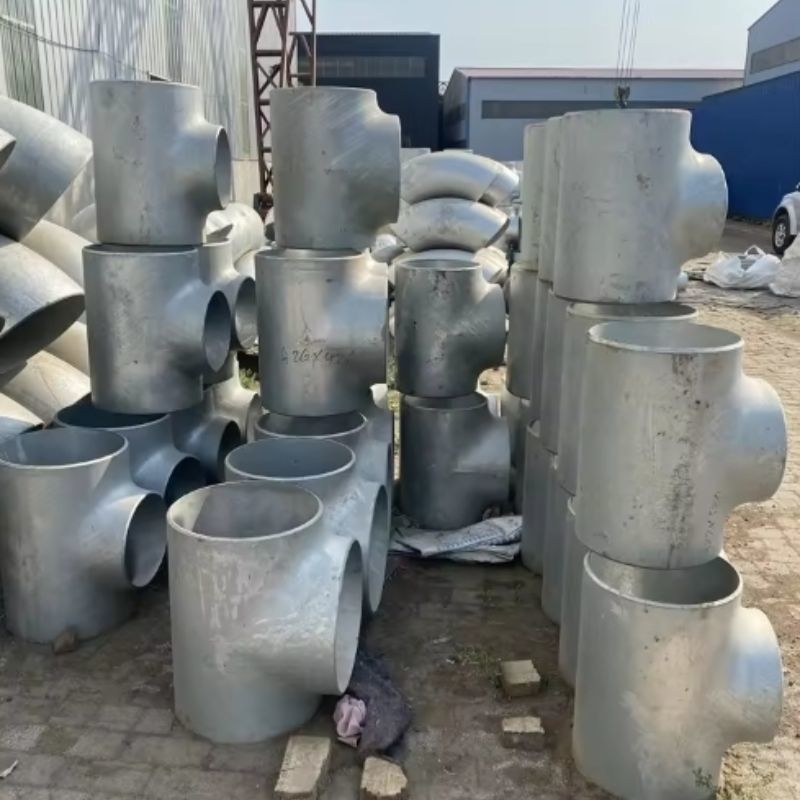

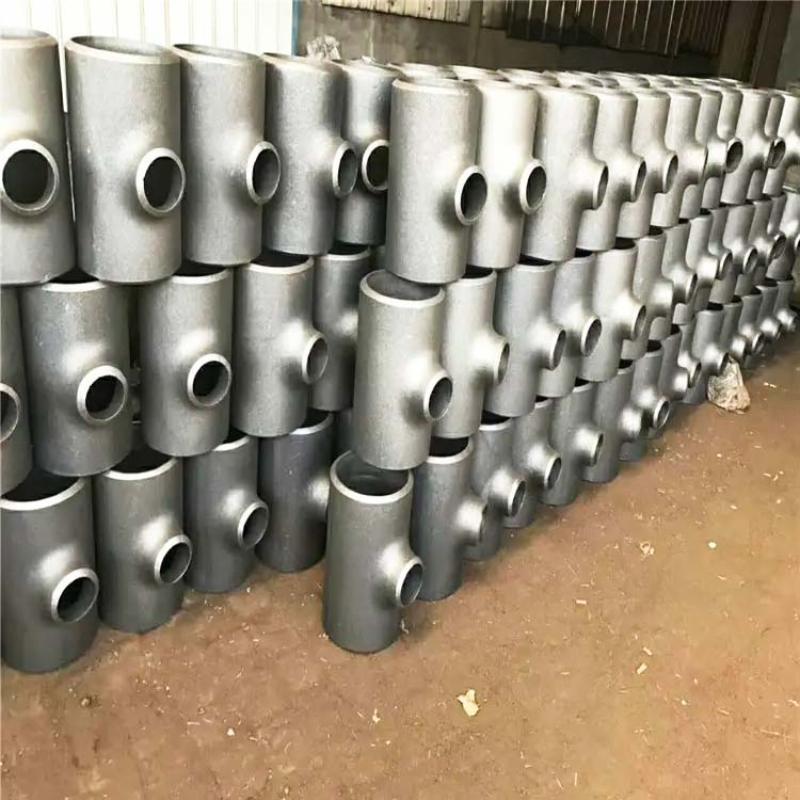

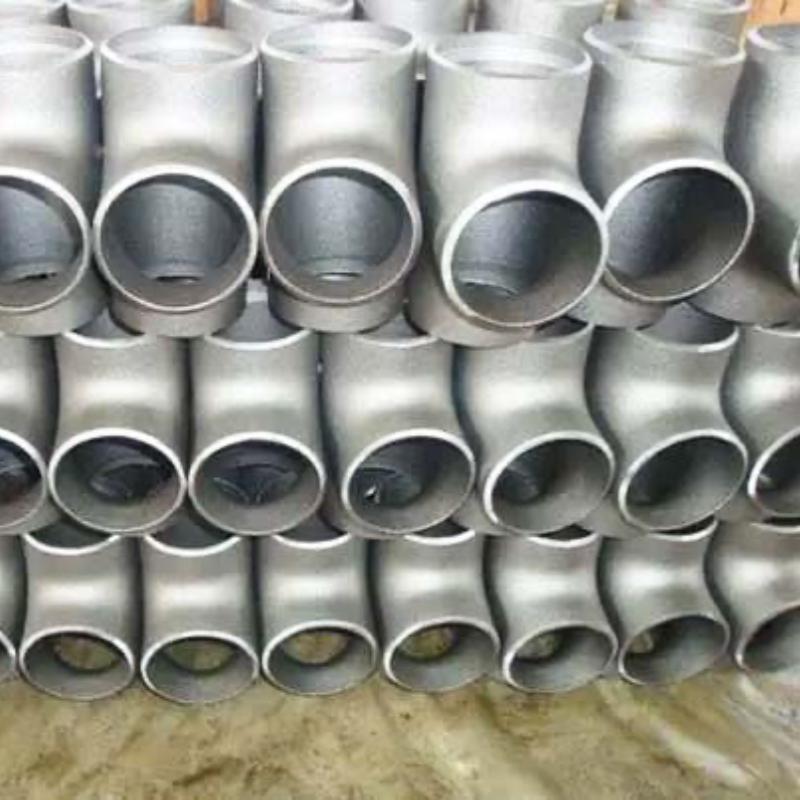

Product Warehouse |
|
|
|
|
|
|
|
|
Applications
Additional Processing Technology
Product Packaging
Product Transportation
FAQ
How to contact us?
If you are interested in our products, please feel free to contact us at any time. You can contact our product manager through email or the message board at the bottom of the page.
What are your main products?
Our main products are stainless steel products, galvanized steel products, aluminum profiles and lead products. In addition, we also have steel pipes, steel plates and other related steel products.
Do you provide customized product services?
Of course, our professional R&D team can design and produce the products you need according to your specifications and drawings. For example: special size, special control, OEM, etc.
How long will it take for me to get the price?
Please provide product specifications such as material, size, quantity and other requirements. We usually quote within 6 hours, and steel prices fluctuate with the market every day. Our prices are very competitive because we have a stable supply chain. If you would like to get a price as soon as possible, please call us or let us know by email so that we can prioritize your inquiry.
Are you a manufacturer?
Our main products are stainless steel products and galvanized steel products. Our own factory, coupled with our many years of experience in the domestic steel market and long-term cooperation with upstream and downstream suppliers, stable prices, stable quality and stable supply capabilities allow us to have great advantages in stainless steel and galvanized products. At the same time we also have product resources of carbon steel products and color-coated coils, I believe this will also make you satisfied.
Can we visit your factory?
Of course, we welcome you to visit our factory on site or visit our production line through online video to understand our strength and quality. We will arrange a professional team to serve you.You just need to send your itinerary and leave the rest to us.
